Alert

info

The alert system and UI are experimental. Please share your feedback to help us to improve it.

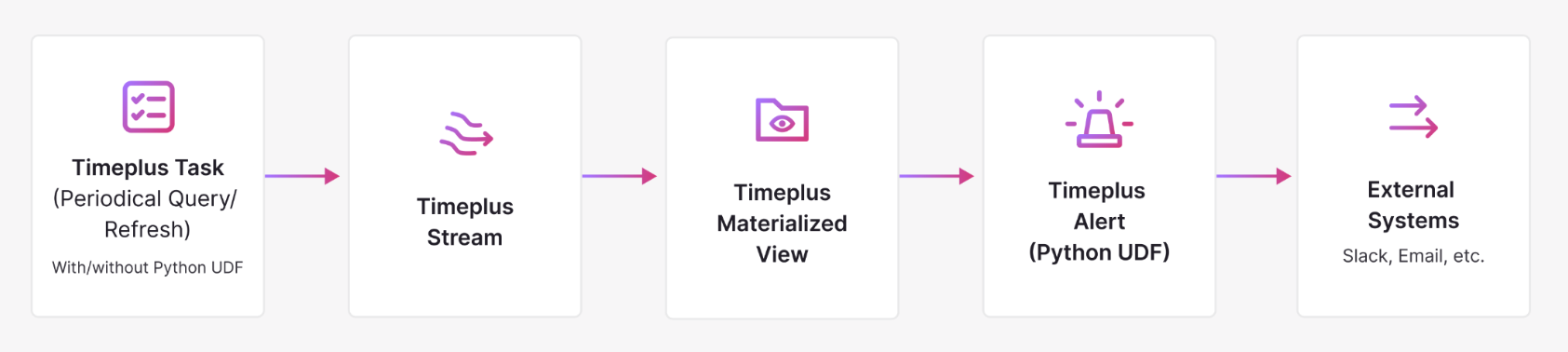

Timeplus provides out-of-box charts and dashboards. You can also create sinks to send downsampled data to Kafka or other message buses, or notify others via email/slack. You can even send new messages to Kafka, then consume such messages timely in the downstream system. This could be a solution for alerting and automation.

Since it's a common use case to define and manage alerts, Timeplus started supporting alerts out-of-box.

Create New Alert Rule​

Access the /console/alerts page to open the new Alert Manager.

You can check the button to create a new alert. Parameters:

  • Name: required, a unique name to identify the alert among other alerts in your workspace.
  • Severity: Critical, High, Low
  • Description: optional text to describe the purpose or logic of the alert
  • Trigger SQL: required. A streaming SQL. Once there is any new result from the query, Timeplus will fire the alert.
  • Clear SQL: optional. Another streaming SQL. Once there is any new result from the query, Timeplus will set this alert as resolved.
  • Output: currently we support Slack and PagerDuty to notify the users.
    • Slack:
      • Webhook URL: required. Please follow the guide to create one from slack.com.
      • (Trigger) message body: optional. The message title is New Alert alert on ALERT_NAME is triggered! By default the message is Event: JSON You can customize the default template. Refer to the value for each column using the {{.column}} expression.
      • (Clear) message body: optional. The message title is Alert alert on ALERT_NAME is resolved! By default the message is Event: JSON You can customize the default template. Refer to the value for each column using the {{.column}} expression.
    • PagerDuty:
      • Routing Key: required. 32 character Integration Key for an integration on a PagerDuty service or rule set. Please check the PagerDuty documentation for details.
      • Component: optional, the additional context about what component goes wrong.

Example:

  • You can set the Trigger SQL as select avg(speed_kmh) as avg from tumble(car_live_data,5s) group by window_start having avg>51
  • Clear SQL as select avg(speed_kmh) as avg from tumble(car_live_data,5s) group by window_start having avg<=51
  • The message body for trigger message is Avg car speed is {{.avg}}

List Alerts​

The Alerts tab shows the alert history. The alert status is either ALERT or OK. You can manually resolve an alert in ALERT status.

List Alerts Rules​

The Alert Rules tab lists all defined alert rules. You can edit or delete the rule or resolve one alert no matter what status it is.
