Tumble Window Aggregation

Overview

A tumbling window divides an unbounded data stream into fixed-size, non-overlapping intervals based on event time or processing time.

Each event belongs to exactly one window. This is useful for periodic aggregations such as per-minute averages, hourly counts, or daily summaries.

Unlike hopping or session windows, tumbling windows do not overlap — once a window closes, a new one immediately starts.
This makes them simple, deterministic, and ideal for producing periodic reports or metrics.

Syntax

SELECT <grouping_keys>, <aggr_functions>
FROM tumble(<stream_name>, [<timestamp_column>], <window_size>])
[WHERE clause]
GROUP BY [window_start | window_end], <other_grouping_keys> ...
EMIT <emit_policy>

Parameters

• <stream_name> : the source stream the tumble window applies to. Required
• <timestamp_column> : the event timestamp column which is used to calculate window starts / ends and internal watermark. You can use now() or now64(3) to enable processing time tumble window. Default is _tp_time if absent. Optional
• <window_size> : tumble window interval size. Supported interval units are listed below. Required
  • s (second)
  • m (miniute)
  • h (hour)
  • d (day)
  • w (week)

Example

CREATE STREAM device_metrics (
    device string,
    cpu_usage float,
    event_time datetime64(3)
);

SELECT
    window_start,
    window_end,
    device,
    avg(cpu_usage) AS avg_cpu
FROM tumble(device_metrics, event_time, 5s)
GROUP BY
    window_start,
    device
EMIT AFTER WINDOW CLOSE;

Explanation:

• Events are grouped into 5-second, non-overlapping windows based on their event_time.
• Each device’s events are aggregated independently within each window.
• When a window closes, the system emits one aggregated result per device with the computed avg_cpu.

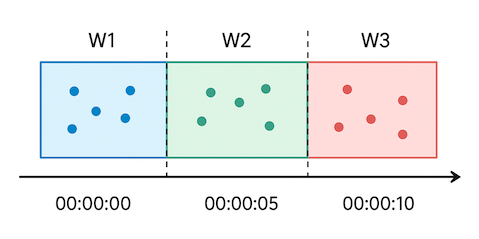

Example timeline:

Window	Time Range	Events Included
W1	00:00:00 → 00:00:05	Events in [00:00:00, 00:00:05)
W2	00:00:05 → 00:00:10	Events in [00:00:05, 00:00:10)
W3	00:00:10 → 00:00:15	Events in [00:00:10, 00:00:15)

Each event falls into exactly one window, ensuring deterministic aggregation and predictable output intervals.

Emit Policies

Emit policies define when Timeplus should output results from time-windowed aggregations such as tumble, hop, session and global-windowed aggregation.

These policies control whether results are emitted only after the window closes, after a delay to honor late events, or incrementally during the window.

EMIT AFTER WINDOW CLOSE

This is the default behavior for all time window aggregations. Timeplus emits the aggregated results once the window closes.

Example:

SELECT window_start, device, max(cpu_usage)
FROM tumble(device_metrics, 5s)
GROUP BY window_start, device;

This query continuously computes the maximum CPU usage per device in every 5-second tumble window from the stream device_metrics. Each time a window closes (as determined by the internal watermark), Timeplus emits the results once.

info

A watermark is an internal timestamp that advances monotonically per stream, determining when a window can be safely closed.

EMIT AFTER WINDOW CLOSE WITH DELAY

Adds a delay period before emitting window results, allowing late events to be included.

Example:

SELECT window_start, device, max(cpu_usage)
FROM tumble(device_metrics, 5s)
GROUP BY window_start, device
EMIT AFTER WINDOW CLOSE WITH DELAY 2s;

This query aggregates the maximum CPU usage for each device per 5-second tumble window, then waits 2 additional seconds after the window closes before emitting results. This helps capture any late-arriving events that fall within the window period.

EMIT TIMEOUT

In some streaming scenarios, the last tumble window might remain open because no new events arrive to advance the watermark (i.e., the event time progress). The EMIT TIMEOUT clause helps forcefully close such idle windows after a specified period of inactivity.

Example:

SELECT window_start, device, max(cpu_usage)
FROM tumble(device_metrics, 5s)
GROUP BY window_start, device
EMIT TIMEOUT 3s;

In this example:

• The query continuously aggregates the maximum CPU usage per device in 5-second tumble windows.
• If no new events arrive for 3 seconds, Timeplus will force-close the most recent window and emit the final results.
• Once the window is closed, the internal watermark (event time) advances as well.
• Any late events that belong to this now-closed window will be discarded.

EMIT ON UPDATE

Emits intermediate aggregation updates whenever there are new events flowing in an open window. This is useful for near real-time visibility into evolving metrics.

Example:

SELECT
  window_start, device, max(cpu_usage)
FROM
  tumble(device_metrics, 5s)
GROUP BY
  window_start, device
EMIT ON UPDATE;

Here, during each 5-second window, the system emits updates whenever there are new events flowing into the open window, even before the window closes.

EMIT ON UPDATE WITH BATCH

Combines periodic emission with update-based triggers. Timeplus checks the intermediate aggregation results at regular intervals and emits them if they have changed which can significally improve the emit efficiency and throughput compared with EMIT ON UPDATE.

Example:

SELECT
  window_start, device, max(cpu_usage)
FROM
  tumble(device_metrics, 5s)
GROUP BY
  window_start, device
EMIT ON UPDATE WITH BATCH 1s;

EMIT ON UPDATE WITH DELAY

Similar to EMIT ON UPDATE, but includes a delay to allow late events before emitting incremental updates.

Example:

SELECT
  window_start, device, max(cpu_usage)
FROM
  tumble(device_metrics, 5s)
GROUP BY
  window_start, device
EMIT ON UPDATE WITH DELAY 2s;
