Materialized View Lifecycle

A Timeplus Materialized View maintains its internal state and can transition between different states.
Understanding these transitions is important for operating and troubleshooting Materialized View pipelines.

States

Materialized Views can exist in the following states. Some are transient (short-lived during transitions):

• Initializing (transient): The view is being initialized.
• CheckingDependencies (transient): The system is verifying source dependencies.
• BuildingPipeline (transient): The query execution pipeline is being constructed.
• ExecutingPipeline: The view is running and executing its streaming query pipeline. This is the normal operating state.
• Error: The view encountered an error.
• Suspended: The view is inactive because it is not the Raft leader. Only the leader executes the pipeline. Suspended views act as standby replicas for failover.
• Paused: The view is paused, either due to the pause_on_start setting or a SYSTEM PAUSE command.
• AutoRecovering (transient): The view is automatically recovering from transient errors.
• Resuming (transient): The view is transitioning from Paused to ExecutingPipeline.
• Recovering (transient): The view is being manually recovered from Error state using SYSTEM RECOVER.

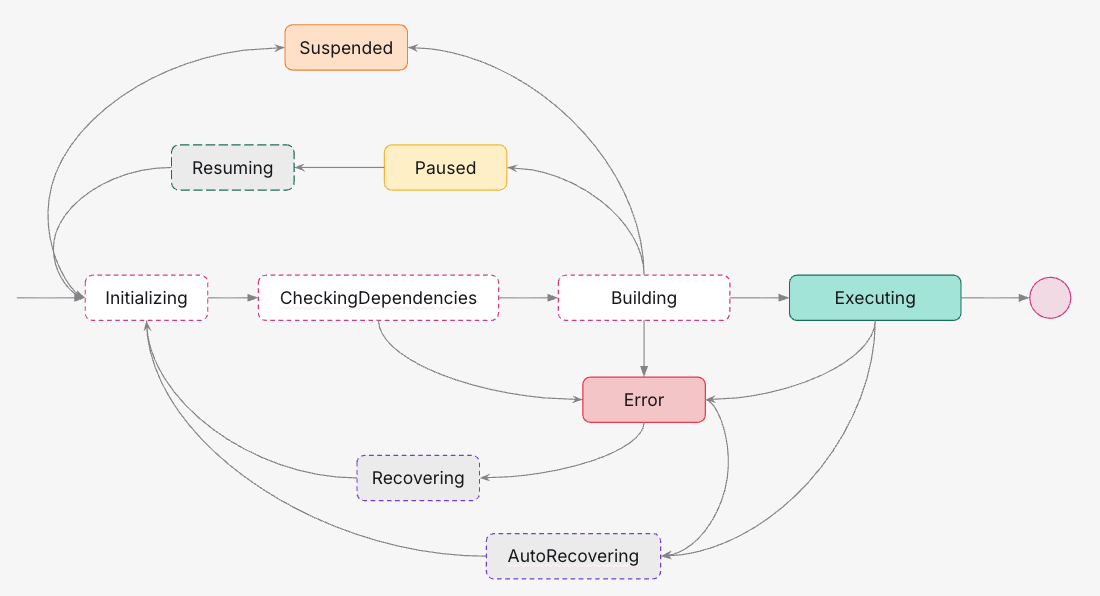

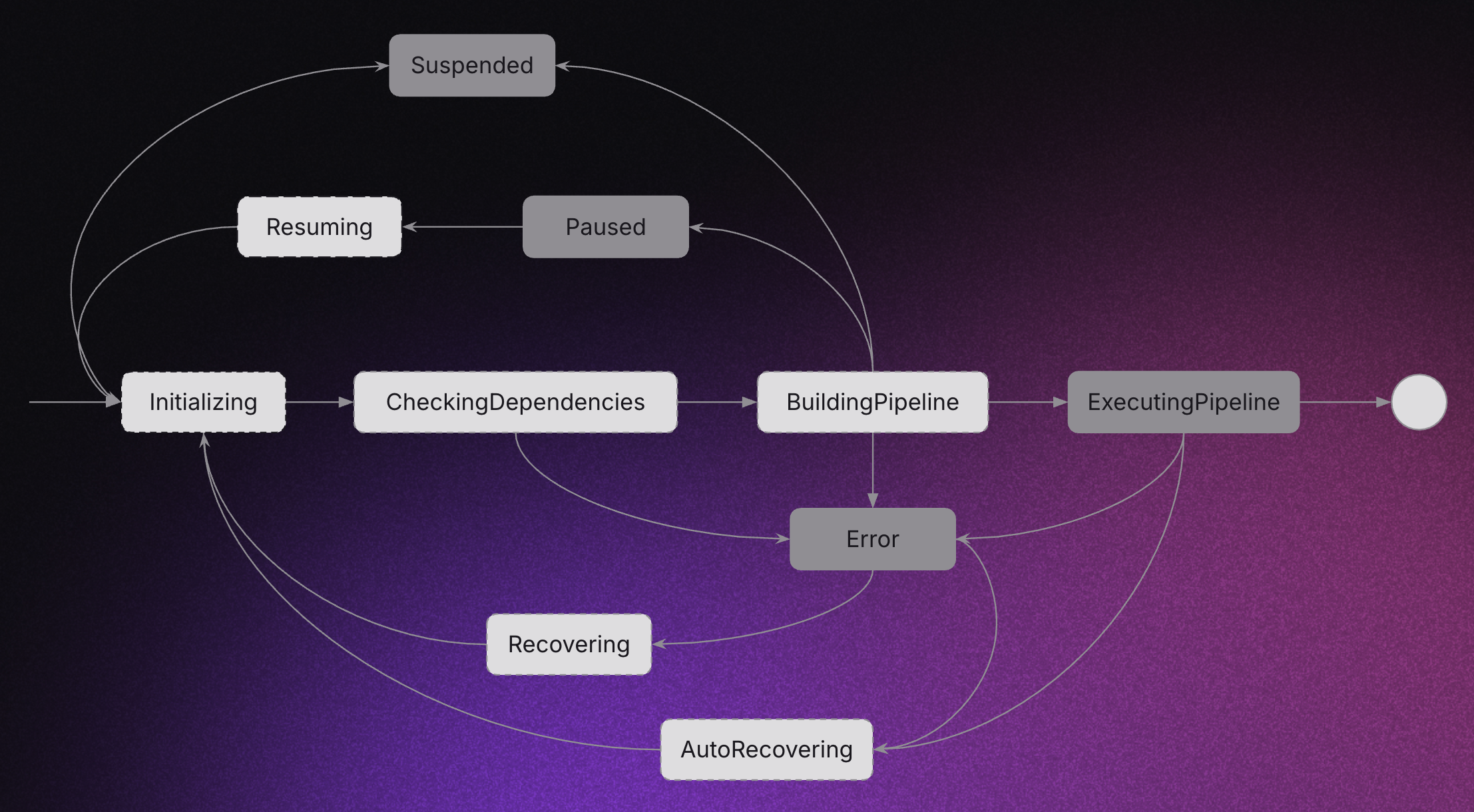

The state transitions are illustrated in the diagram below:

System Commands

Timeplus provides system commands to manage Materialized Views.

Pause Materialized View

SYSTEM PAUSE MATERIALIZED VIEW <db.mat_view_name> [PERMANENT];

When pausing a Materialized View:

1. The leader triggers a checkpoint.
2. The leader stops the query pipeline and marks the state as Paused.
3. If PERMANENT is specified, the system updates pause_on_start=true in the DDL metadata and commits it to the metastore.
   • This ensures the view remains paused even after node restarts.
   • Without PERMANENT, the view will resume automatically on restart.

Example:

SYSTEM PAUSE MATERIALIZED VIEW tumble_aggr_mv;

Resume Materialized View

SYSTEM RESUME MATERIALIZED VIEW <db.mat_view_name> [PERMANENT];

When resuming a view:

1. The leader rebuilds the query pipeline.
2. The pipeline recovers from the last checkpoint.
3. If successful, the state transitions to ExecutingPipeline state.

Only paused Materialized Views can be resumed.

Example:

SYSTEM RESUME MATERIALIZED VIEW tumble_aggr_mv;

Abort Materialized View

Aborting is similar to pausing, but:

• No checkpoint is triggered.
• The pause_on_start setting is not modified in the DDL metadata.

SYSTEM ABORT MATERIALIZED VIEW <db.mat_view_name>;

Example:

SYSTEM ABORT MATERIALIZED VIEW tumble_aggr_mv;

Recover a Materialized View

Used to recover views in the Error state. Recovery involves:

1. Re-initializing the query pipeline.
2. Restoring state from the last checkpoint.
3. Transitioning to ExecutingPipeline.

SYSTEM RECOVER MATERIALIZED VIEW <db.mat_view_name>;

Example:

SYSTEM RECOVER MATERIALIZED VIEW tumble_aggr_mv;

Transfer Materialized View Leader

For Materialized Views governed by Raft, you can transfer leadership to another replica. This helps balance workload or mitigate temporary issues.

SYSTEM TRANSFER LEADER <db.mat_view_name> <mat_view_shard_id> FROM <leader_node> TO <follower_node>;

info

The shard ID of a Materializzed View is always 1001.

Once transferred, the new leader continues execution from the last checkpoint.

Example:

SYSTEM TRANSFER LEADER tumble_aggr_mv 1001 FROM 1 TO 2;
